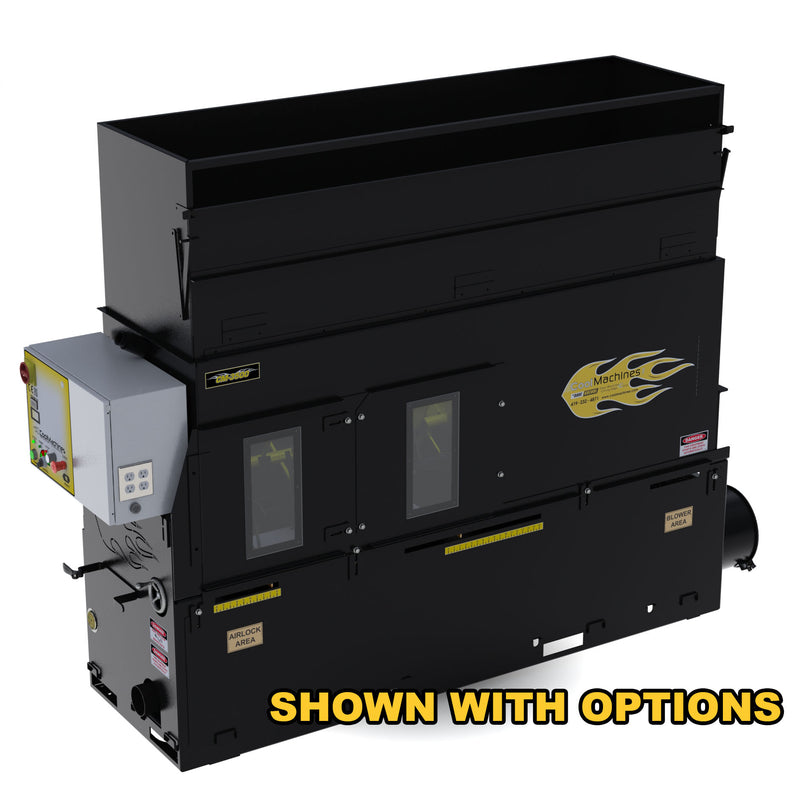

Cool Machines CM-3500XLVP Vac-Pack CM350020-5HPvacpackXL All Fiber Blowing Machine

Cool Machines CM-3500XLVP Vac-Pack CM350020-5HPvacpackXL All Fiber Blowing Machine

by Cool Machines
$34,780.00 - $34,780.00
$34,780.00
$34,780.00 - $34,780.00
$34,780.00

Cool Machines CM-3500XLVP Vac-Pack CM350020-5HPvacpackXL All Fiber Blowing Machine

20" airlock 5 HP pd blr with 5 HP "Vac-pack" recycle up-grade

Vac-Pack technology offers a low maintenance, positive pressure vacuum system with no slow down in production, and discharges into the neutral pressure hopper
inside the trailer/truck with no resulting air surges, or dust. This system offers a fast, smooth spraying application while minimizing set-up time and maximizing endurance of the system.

Our CM-3500XL System with dual metering hoppers, offers streamlined efficiency, application versatility, and components that are both simple to use and easy to repair. This machine provides both the start-up contractor and the high production installers a solution that makes sense.

The complete system design with modest power requirements, offers you a CM-3500XL that can be transported in a truck or trailer to the job-site, and set-up to spray or blow in minutes.

This ingenuously designed truck system with self contained hose reels, heated water tanks, and generator, provide all the necessities for a portable, self-sustaining spray system. The reduced power requirements for this system allow you to use 240 volt, 50 amps job-site power from the grid to conserve generator costs.

Production Rate:
Material                               Production Rate

Cellulose                             4500 lbs/hr. (*5400 lbs/hr.)
Fiberglass                            1800 lbs/hr. (*2400 lbs/hr.)
Rockwool                            2200 lbs/hr. (*2700 lbs/hr.)
Wall Spray                           Cellulose 40 bags/hr.

Features

  • Integrated Proprietary Vac-Pack technology allows for vacumming of sprayed material excess to be reycled back into system.
  • Dual stainless SlideGate controls for metering recycle and dry fiber.
  • Twin long-life P.D. blowers provide superior vacuum and blowing performance.

Specifications

Weight: 2465 lbs.(Dual 5hp PD Blower)
2500 lbs.(5hp & 7.5hp PD Blower)

Dimensions (LxWxH):

  • 107" x 29" x 75 1/2" (Side of Truck/Trailer)
  • 94" x 29" x 75 1/2" (Front of Truck/Trailer)
  • 75 1/2" - 82" (Tall w/ Hopper Extension Option)

Hopper Capacity:
Dry: 28 ft.3 (49.5 ft.3 w/ Hopper Extension)

Recycle: 9 ft.3

Total: 37 ft.3 (58.5 ft.3 w/ Hopper Extension)

Airlock Options:

  • 12” dia. x 20” long, 4” output tube.
  • 12” dia. x 24” long, 4” output tube.

Drive Motor: 3 h.p.

Blower Options:

  • Dual 5 h.p. (Blower & Vacuum)
  • 180 c.f.m. Blower & 180 c.f.m. Vacuum
  • 5 h.p. Blower & 7.5 h.p. Vacuum
  • 180 c.f.m. Blower & 205 c.f.m. Vacuum

Power Requirements:
50 amp. 240 volt, single phase, single input
