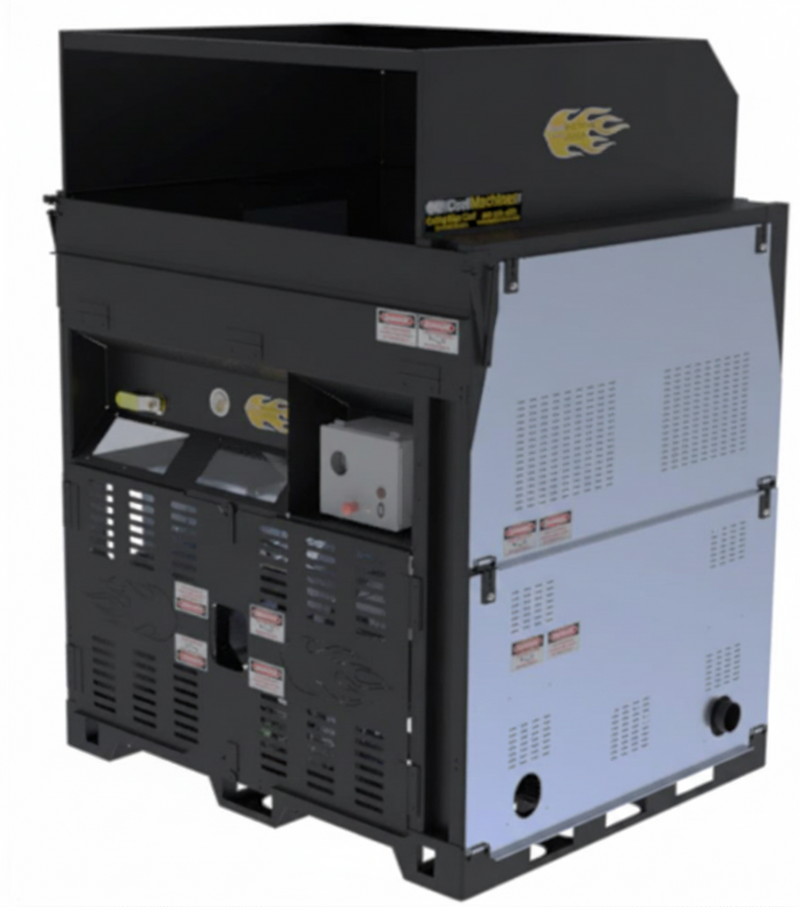

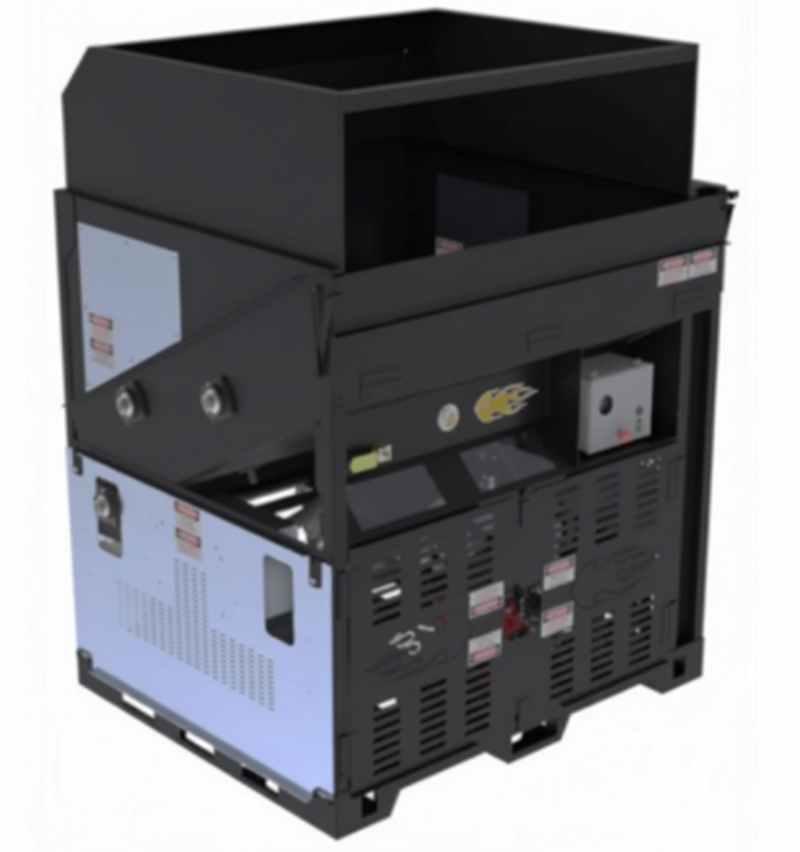

Cool Machines CM-3X (Electric) Electric-Powered Insulation Blowing Machine

CM-3X Machine System

Finally, we’re “cooking” with GAS! ...or Diesel...or Battery...or PTO...or Hybrid

A true front-mount machine by Cool Machines has been a long time in development, but we didn’t want to offer a generic machine that seemed like a copy and paste product! We wanted to offer the most flexible machine, when it comes to powerplant with a simplified drive system.

Features

Featuring:

• Dual hopper agitators combined with our “Scalping Auger” design for increased fiber feeding
• Standard 24” (61cm) airlock for top-level performance
• The new Hyper-shredder for ultra-enhanced fiber conditioning.
• Massive 110 ft³ (3.12 m³) hopper

Specifications

Weight:

• Electric (Shore Power) – 1550 lbs. (703 kg)

Dimensions (LxWxH):

• 75” x 61” x 94” (190.5cm x 155cm x 239cm)
• Hopper Capacity: 110 ft3 (3.12 m3)

Airlock (Ø x Long):

• Ø12” x 24” with Ø4” Output Tube (Ø30.5cm x 61cm with Ø10.16cm Output Tube)
• PD Blower (10hp equivalent)
• 280 cfm, 6.0 psi (476 m3/hr, 414 mbar)


Power Requirements Options (US):

• 30 amp, 240 volt, single input, 1 Phase
• 15 amp, 480 volt, single input, 3 phase

Resources

Cool Machines CM-3X Machine System Brochure
