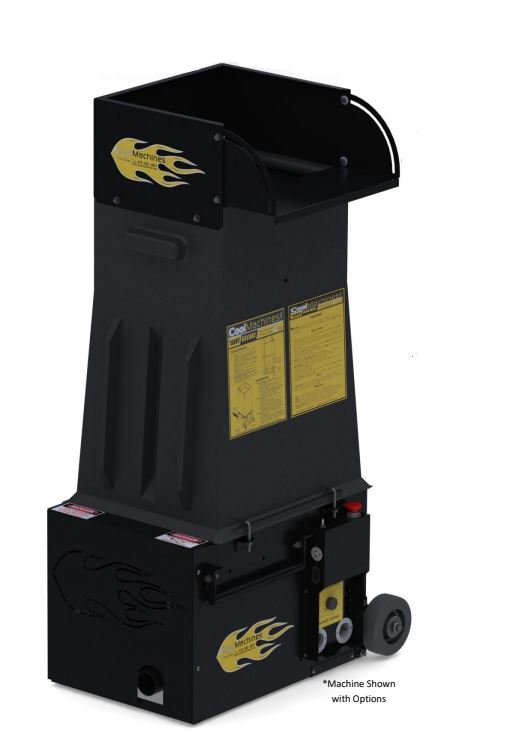

Cool Machines CM 700 CM700-1 Standard Insulation Machine
Cool Machines CM 700 CM700-1 Standard Insulation Machine
The Cool Machines CM700 is an All-Fiber, (retro-fit) Dense-Pack, Wall Spray, SideWall, Portable Attic Blower Machine.
The Cool Machines CM-700 is made to be the ultimate portable insulation blower machine with a low power requirement. Compact in size along with an easy to remove hopper enables for smooth handling and transport. Low power requirements (single input - 15A) for the CM700 Insulation Machine are easily supplied using any home standard outlet.
*The Deluxe model is recommended for spray applications and contractors.
Features
The CM700 by Cool Machines has a simple design with a minimum of moving parts deliver a low maintenance insulation blower machine that is easy to operate and repair.
Insulation Material / Production Rate per hour
Cellulose: 950 pounds
Fiberglass: 400 pounds
Rockwool: 600 pounds
Production rates are measured with 100 foot hose at a 12 foot rise.
Mechanical
- 7.5 cu./ft. hopper capacity fiber storage. Quick-release hopper offers fast access to airlock with easy handling and transport
- Quick release auger provides easy access to airlock seal replacement and service
- Slide-gate and (Deluxe) variable speed blower control provides precise control of fiber
- High quality powder coating provides a long lasting, scratch & corrosion resistant finish
- Modular design with see-thru access panel for quick troubleshooting and maintenance
- Dual ‘scalping’ auger/shredders increase fiber conditioning while providing consistent feed
- #40 nickel plated chain and hardened sprockets are rugged, and corrosion resistant
- Small 104 cfm integrally mounted blower & filter protection
- (Deluxe) 150 ft. dual function (3-position) remote cord w/cord hanger, offers control and convenience
Electrical
- Recessed modular control panel w/plug & receptacles for easy removal and replacement (Features plug in bypass)
- Safety Features: kill switch and manual override controls promote increased operator safety and quick hazard response
- Panel mounted manual thermal overload protection of motors and electrical components
- L.E.D. ‘lighted’ plugs for quick electrical diagnostics
- Auxiliary outlet for wireless remote
Specifications
Weight: 180 lbs.
Dimensions: 28″l x 22″w x 58″h
Hopper Capacity: 7.25 ft.3
Airlock Size: 8” dia. x 10” long 4.0 p.s.i. w/ 2.5” output tube.
Drive Motor: 1/3 h.p
Blower Options:
- 8 amp. /104 c.f.m. (Standard)
- 13 amp. /140 c.f.m. (Deluxe)
Power Requirements (120 volt):
- 15 amp. input (Standard)
- 15 amp. double input (Deluxe)
