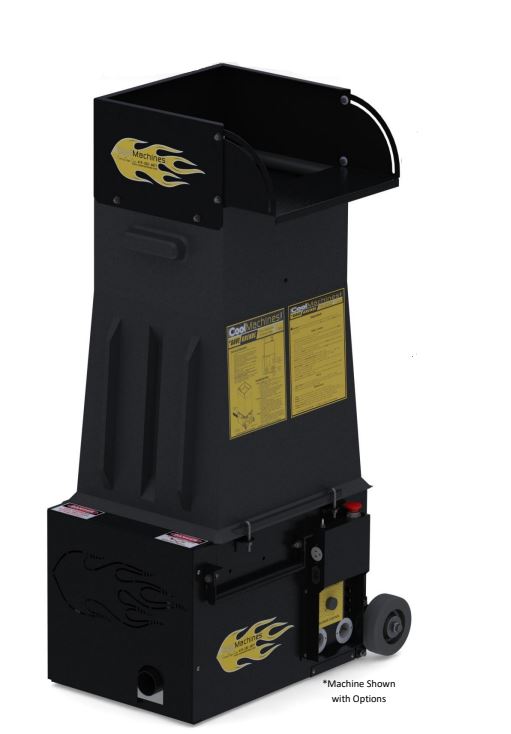

Cool Machines CM 700 CM700-2 Deluxe Insulation Machine
Cool Machines CM 700 CM700-2 Deluxe Insulation Machine
The Cool Machines CM700 is an All-Fiber, (retro-fit) Dense-Pack, Wall Spray, SideWall, Portable Attic Blower Machine.
The Cool Machines CM-700 is made to be the ultimate portable insulation blower machine with a low power requirement. Compact in size along with an easy to remove hopper enables for smooth handling and transport. Low power requirements (single input - 15A) for the CM700 Insulation Machine is easily supplied using any home standard outlet.
*The Deluxe model is recommended for spray applications and contractors
Features
The CM700 by Cool Machines has a simple design with a minimum of moving parts deliver a low maintenance insulation blower machine that is easy to operate and repair.
CM700 Features
Insulation Material Production Rate per hour
Cellulose 900 pounds
Fiberglass 400 pounds
Rockwool 600 pounds
Production rates are measured with 100 foot hose at a 12 foot rise.
Mechanical
- 7.5 cu./ft. hopper capacity fiber storage. Quick-release hopper offers fast access to airlock with easy handling and transport
- Quick release auger provides easy access to airlock seal replacement and service
- Slide-gate and (Deluxe) variable speed blower control provides precise control of fiber
- High quality powder coating provides a long lasting, scratch & corrosion resistant finish
- Modular design with see-thru access panel for quick troubleshooting and maintenance
- Dual ‘scalping’ auger/shredders increase fiber conditioning while providing consistent feed
- #40 nickel plated chain and hardened sprockets are rugged, and corrosion resistant
- Small 104 cfm integrally mounted blower & filter protection
- (Deluxe) 150 ft. dual function (3-position) remote cord w/cord hanger, offers control and convenience
Electrical
- Recessed modular control panel w/plug & receptacles for easy removal and replacement (Features plug in bypass)
- Safety Features: kill switch and manual override controls promote increased operator safety and quick hazard response
- Panel mounted manual thermal overload protection of motors and electrical components
- L.E.D. ‘lighted’ plugs for quick electrical diagnostics
- Auxiliary outlet for wireless remote
Specifications
Weight: 195 lbs (89 kg.)
Blower: 13 amp (140 cfm) 8.4” dia. 4.0 p.s.i. (Overseas Export: 6.6 amp. 230 volt, 50 hz)
Includes remote cord with blower control
Dimensions:
- Overall: 21”W x 17”L x 48”H (53cm x 43cm x 122cm)
- Base Unit: 21”W x 17”L x 17”H (53cm x 43cm x 43cm)
Airlock:
- 8” long x 8” diameter (20cm x 20cm) Volume=402 in.3 (6588 cm3)
- 2.5” (6.4cm) output for blowing hose
Power Requirements: Single Input: 15 amp. 120 volt. 60 hz. (Export:10 amp. 230 volt, 50hz)
Options:
- Standard or Deluxe Model
- CE mark Conformity f/export
- Wireless remote
- Hose & Hose Reels, etc.
- Hopper Capacity
- 7.5 cu./ft. [Quick-release Hopper]
Generator Size: 4,000 watt or larger
