Cool Machines CM450014-10HP Insulation Blowing Machine

Original price $28,416.00 - Original price $28,416.00
Original price
$28,416.00 - $28,416.00
Current price $28,416.00

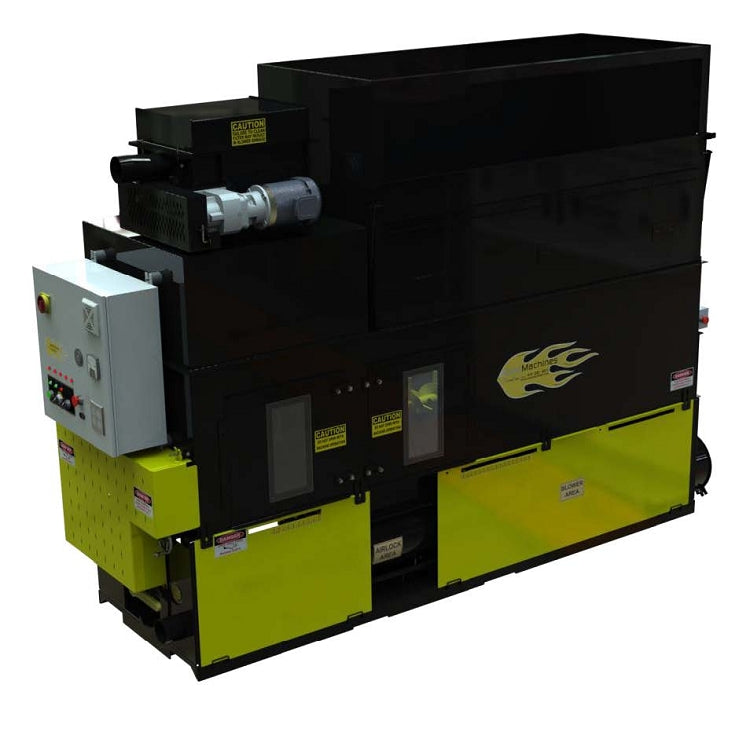

Cool Machines CM450014-10HP Insulation Blowing Machine

14" x 24" airlock 10 HP positive displacement blower

Cool Machines Big Dog CM-4500 series insulation machine combines a large 100 cubic foot hopper with high-speed production into a simple, compact machine.

The optional 14” x 24” oversized airlock feeder and 10 h.p. positive displacement (P.D.) blower provide the ‘punch’ to knock-out the big jobs.

Wall Spray? Bring it on!!! Our optional Vacuum Hood/Gas Vacuum or 10 h.p. (P.D.) Vac-Pack Recovery Systems streamline the spray process and reduce labor costs.

A big dry hopper (75 ft.3/16 bags cellulose) allows the operator to leave the truck for long durations assisting with duties inside the structure.

Simple dual slide gate controls for recycle and dry in a single, compact machine provide a fast, accurate application of dry blended fibers into the wall; while conserving space inside your vehicle.

Our integrated recycle technology precisely controls the introduction of dry and recycle fiber in a separate metering hopper. This process significantly increases speed of application and decreases moisture. These features allow the contractor to reduce labor while allowing the spray nozzle to run non-stop. The “Big Dog” CM-4500 is the solution to increasing profits on large, demanding jobs.

Material | Production Rate
Cellulose 4,500 lbs/hr (*5,400 lbs/hr)
Fiberglass 1,800 lbs/hr (*2,400 lbs/hr)
Rockwool 2,200 lbs/hr (*5,000 lbs/hr)
Wall Spray Cellulose 40 bags/hr


Weight: 2,400 lbs.

Dimensions (L x W x H): 112 x 35 x 89 inches

Hopper Capacity: 100 cubic ft. (24 bags cellulose/6 bags fiberglass)

Airlock size: 4 inch O.D. Ouput @ 6 p.s.i.; 4” dia. x 24" Long

Drive motors: 3 HP

Blower: 10 h.p. P.D. Blower / 4L, 350 c.f.m.

Power Requirements:
240 volt, 30 amp. 1-phase (5 hp PD Blower)
480 volt, 20 amp. 3-phase (10 hp PD Blower
