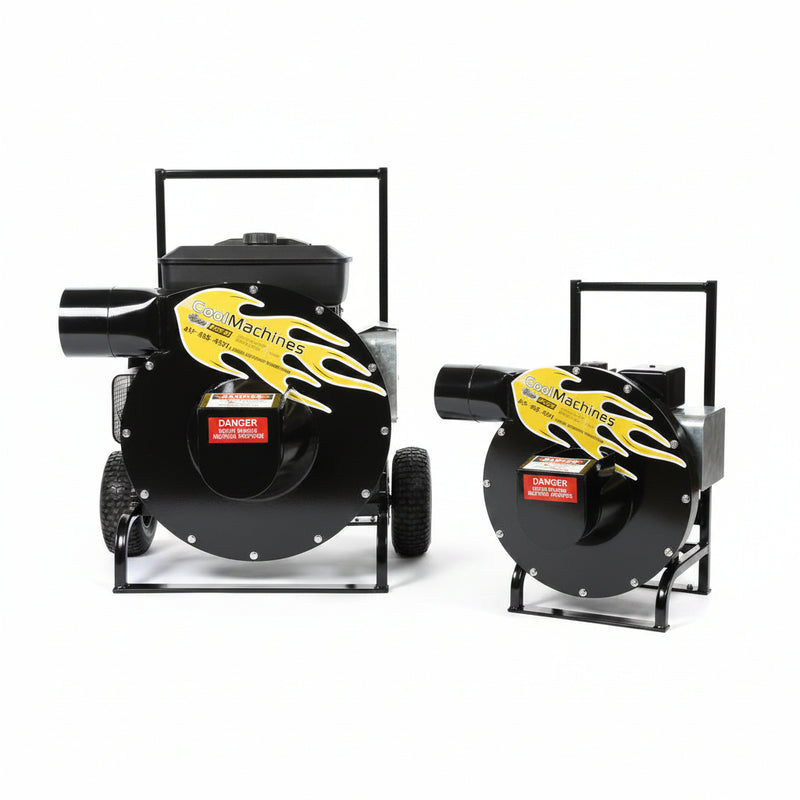

Cool Machines CV-11 C2U118-11HP Cool Vac CV11 Insulation Machine Vacuum

Original price $3,460.00 - Original price $3,460.00
Original price
$3,460.00
$3,460.00 - $3,460.00
Current price $3,460.00

Cool Machines CV-11 C2U118-11HP Cool Vac CV11 Insulation Machine Vacuum

The CV 11 features an exclusive wear strip or 'liner' inside the fan chamber which is replaceable.
The new & innovative retrofit attic insulation standards presented by experts in building science & weatherization professionals have proven the importance of new diagnostic techniques. Testing using blower doors along with thermal imaging proves that air sealing attics & eave areas utilizing closed cell spray foam as well as re-insulation provides the greatest energy savings in older homes.

An industry first is the replaceable low cost liner inside fan's chamber which allows an inexpensive solution for extreme wear due to highly abrasive insulation fibers & foreign debris that pass through the chamber.

The heavy duty, abrasion resistant fan blades are robotically welded with solid welds the entire length of the blade which reduces the chance of catastrophic failure from operational stress. Dynamic computerized balancing provides a precision, smooth running blade with minimal wear to the engine bearings.

Features

  • Specially designed turbo sonic FC blade induces fan tip turbulence which eliminates the accumulation of wet fiber and build up on blades & chamber area. Simultaneously increases the vacuum pressure giving you higher productivity.
  • Fan blades are Abrasion-resistant - Robotically welded using solid welds
  • Computerized dynamic balancing provides smooth running precision blade and minimal engine bearing wear
  • Welded steel heavy gauge construction
  • Powder coated

Specifications

Weight: 170 lbs.

Dimensions: 30” long x 28” wide x 38” high

Engine: Briggs OHV Dura-lube, 1650 Series I/C cast iron sleeve, 0.8-gallon tank, low-level oil shutdown [manual pull start or electric]

Fan Housing: ¼” AR-400 steel fan x ¼” AR-400 steel chamber

Blade Diameter: 18" Diameter

r.p.m. / hour meter

Engine Warranty: 2 year consumer/1 year commercial

6" dia. Inlet and Exhaust

10" dia. Run-Flat Wheels
