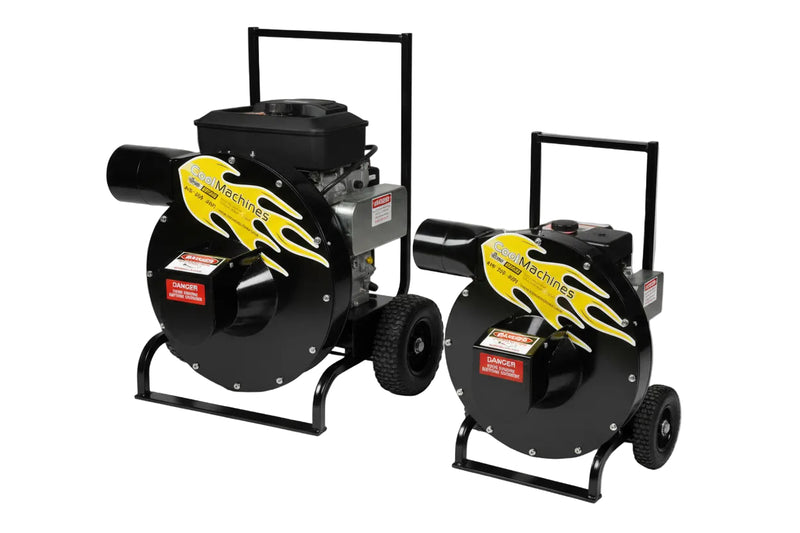

Cool Machines CV-16 C2U116-20-F Cool Vac CV16 Insulation Machine Vacuum
Cool Machines CV-16 C2U116-20-F Cool Vac CV16 Insulation Machine Vacuum
Cool Machines, Inc. introduces the weatherization industry’s best rated wet/dry heavy duty Gas Insulation Removal Vacuum which has cutting edge innovative features.
The Cool-Vac CV16 is a very high production, portable, and versatile vacuum which helps you to reduce labor time & increase your profitability. Existing insulation is efficiently and quickly removed from crawl spaces, sidewalls, and attics easily.
The CV-16 can handle smoke, water, and fire damaged insulation, and damp wall cavity recycling with speed and dependability. Fiber needed for recycling is easily directed to a spray machine to reuse. Waste insulation materials are easily discharged into a 75 cubic foot disposable bag (bought separately), or can go directly into your dumpster or truck.
Insulation fiber in old homes can typically be extremely abrasive fiberglass and rockwool fibers which have a lot of foreign debris, small objects, and sticky wet fibers. This can inherently cause extreme wear to the chamber, the fan blade, and may result in progressive wet fiber accumulation. The yearly expense of chamber and fan blade replacement because of wear & tear may be more than $1000.00 depending on your frequency of use.
How is the Cool Machines CV-16 vacuum different?
The CV-16 is abrasion resistant, has a fan that is dynamically balanced, and is an inexpensive to replace wear strip in the chamber, the CV16 is 1st in the Weatherization sector to reduce yearly costs. The CV-16's blade has an innovative Turbo Sonic design which eliminates regular service and cleaning for the chamber.
Features
- Inexpensive to replace wear strip in the chamber
- Innovative Turbo Sonic design which eliminates regular service and cleaning for the chamber.
- Fan blades (abrasion resistant) robotically welded w/ solid welds for reducing catastrophic failures because of operational stress.
- Dynamic, precision computer controlled balancing gives you a smooth rotating blade w/ minimal wear on the engine bearings.
- Constructed with heavy gauge powder coated welded steel materials.
- 1 Year Vacuum Warranty
- 2 Year Engine Warranty
- Recommendations for hook-up
Different hose length combinations to a max. fo 175 feet can be utilized effectively. Large diameter hoses that have the shortest length enable max. production rates.
Recommendations:
- 25 feet x 6 inches diameter hose to use for exhaust
- 125 feet x 6 inches diameter hose reduction to 50 feet x 4 inches diameter for max. vacuum suction in attic. (Hose separately priced).
Specifications
- Weight: 250 lbs.
- Dimensions: 33” long x 28” wide x 38” high
- Engine: Briggs “Vanguard” V-twin OHV, 2.25 gallon tank, positive pressure lubrication, low level oil shutdown, oil pressure shutdown switch. [electric start]
- Fan Housing: ¼” AR-400 steel fan x ¼” AR-400 steel chamber
- Blade Diameter: 20" Diameter
- r.p.m. / hour meter
- Engine Warranty: 3 year commercial
- 6" dia. Inlet and Exhaust
- 10" dia. Run-Flat Wheels
- Electric start with included 12 volt battery
- Integrated engine block cooling air filter.
