Cool Machines CV-23 C2U123-20 Cool Vac CV23 Insulation Machine Vacuum

Cool Machines CV-23 C2U123-20 Cool Vac CV23 Insulation Machine Vacuum

by Cool Machines
$7,300.00 - $7,300.00
$7,300.00
$7,300.00 - $7,300.00
$7,300.00

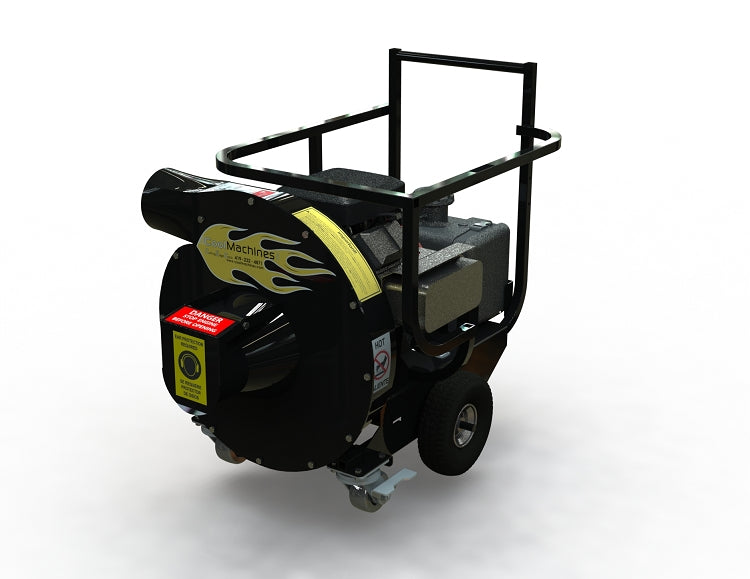

Cool Machines CV-23 C2U123-20 Cool Vac CV23 Insulation Machine Vacuum

The Cool Vac CV23 features an exclusive wear strip or 'liner' inside the fan chamber which is replaceable.

The new & innovative retrofit attic insulation standards presented by experts in building science & weatherization professionals have proven the importance of new diagnostic techniques. Testing using blower doors along with thermal imaging proves that air sealing attics & eave areas utilizing closed cell spray foam as well as re-insulation provides the greatest energy savings in older homes.
An industry first is the replaceable low cost liner inside fan's chamber which allows an inexpensive solution for extreme wear due to highly abrasive insulation fibers & foreign debris that pass through the chamber.

The heavy duty, abrasion resistant fan blades are robotic-ally welded with solid welds the entire length of the blade which reduces the chance of catastrophic failure from operational stress. Dynamic computerized balancing provides a precision, smooth running blade with minimal wear to the engine bearings.

Cool Machines Cool Vac 23 Features Abrasion Resistant Heavy Duty Fan Blades.

Features

  • Specially designed turbo sonic FC blade induces fan tip turbulence which eliminates the accumulation of wet fiber and build-up on blades & chamber area. Simultaneously increases the vacuum pressure giving you higher productivity
  • Fan blades are Abrasion-resistant - Robotic ally welded using solid welds
  • Computerized dynamic balancing provides smooth running precision blade and minimal engine bearing wear
  • Welded steel heavy-gauge construction
  • Powder-coated

Specifications

Weight: 295 lbs

Dimensions: 42” long x 28” wide x 37” high

Engine: Briggs “Vanguard” V-twin OHV, 5 gallon tank, positive pressure lubrication, low level oil shutdown, oil pressure shutdown switch. [electric start]

Fan Housing: ¼” AR-400 steel fan x ¼” AR-400 steel chamber.

Blade Diameter: 20" Diameter

r.p.m. / hour meter

Engine Warranty: 3 year commercial

6" dia. Inlet and Exhaust

10" dia. Run-Flat Wheels

Electric start with included 12 volt battery

Integrated engine block cooling air
