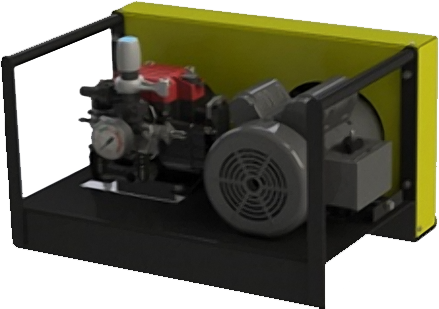

Cool Machines MP-20 C8E920 Pump & Motor Kit 1-1/2 HP 120 Vac

Heavy-duty, medium pressure, diaphragm pump, belt drive

The MP-20 is a self-priming, twin semi-hydraulic diaphragm pump with run-dry capability, featuring anodized aluminum heads for fewer leak points and high durability. A favorite among the professional commercial spray contractors, it’s desired for its ability to move a higher volume of glue and easy clean-up.

Specifications

Weight: 97 lbs.
Dimensions: 22"l x 16”w x 13”h
Max Flow Rate: 5.9 g.p.m.
Max Pressure: 350 p.s.i. (1 ½HP); 435 p.s.i. (2HP)
Pickup: 1” Hose Barb
Bypass: 3/4” Hose Barb
Output: 3/8” Hose Barb
Motor: 1 ½ HP (2HP Optional)
