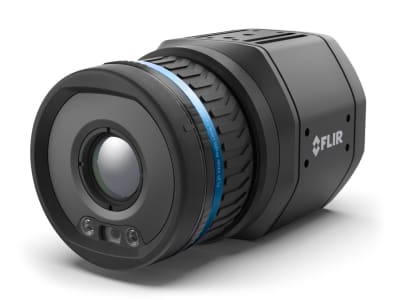

FLIR A500-EST - Fixed Mount EST Screening Camera with 24 Degree Lens (464x348 Resolution)
FLIR A500-EST - Fixed Mount EST Screening Camera with 24 Degree Lens (464x348 Resolution)
A500-EST w/24 Degrees Lens, 464x348 Resolution/30Hz, 15 Degrees C to 45 Degrees C
- Camera for detecting elevated skin temperature
- Includes 24 degree lens
- Part number 90601-0101
- Fixed mount (not handheld)
- 464x348 resolution
- Measures temperature at 161,472 individual points
- Compatible with Modbus TCP, MQTT, RESTful API for data transfer
- Compatible with RTSP for video
- Built-in software is effective and easy to use
- Can be easily deployed as a single, standalone screening station or part of a network
FLIR A400, A500, and A700 Science Kits offer researchers and engineers a streamlined solution for accurate temperature measurement. Simplified yet robust connections help you set up and start testing quickly; then easily view, acquire, and analyze data using included FLIR Research Studio software. The Standard kit includes a FLIR A400, A500, or A700 Image Streaming camera, 24° lens with automatic/remote and manual focusing, as well as FLIR Macro Mode. The Professional kit has the added benefits of MSX image enhancement, radiometric data transmission over Wi-Fi, and a close-up lens for accurate thermal measurements on small components.
Features
SIMPLIFIED ANALYSIS & COLLABORATION
FLIR Research Studio’s simple Connect - View - Record - Analyze workflow helps you obtain and analyze thermal results quickly
ACCURACY YOU CAN COUNT ON
Multiple lens options ensure the maximum number of pixels on your object; crisp auto or manual focus improves thermal measurement
UNMATCHED CONNECTIVITY
Eliminate the need for additional cables using standard Power over Ethernet (PoE) plus Wi-Fi connection to your workstation (Professional kit)
Specifications
IR Resolution: 464 × 348 pixels
Detector Pitch: 17 µm
Pixel Pitch: 17 µm
Spectral Range: 7.5–14.0 µm
Detector Type: Uncooled microbolometer
Dynamic Range: 16-bit
Thermal Sensitivity/NETD: Lens dependent: <30 mK to <40 mK
Frame Rate: 30 Hz
Standard Temperature Range: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
Focus: One-shot contrast, motorized, manual
IMAGING & OPTICAL
Detector Pitch: 17 µm
Detector Type: Uncooled microbolometer
Digital Data Streaming: to PC Gigabit Ethernet (RTSP, GigE Vision) to workstation running included Research Studio Software
Dynamic Range: 16-bit
Field of view (FOV): 24° × 18°
Focus: One-shot contrast, motorized, manual
Frame Rate: 30 Hz
IR Resolution: 464 × 348 pixels
Lens: 24°
Lens: Identification Automatic
Macro Mode: Included
Minimum Focus Distance: 2.0x Macro: 18 mm (0.71 in) 24°: 0.15 m (0.49 ft) 24° with Macro Mode: 17 mm (0.67 in) 42°: 0.15 m (0.49 ft) 14°: 1.0 m (3.28 ft) 6°: 5.0 m (16.4 ft) DFOV (24°/14°): 0.18 m (0.59 ft) and 1.0 m (3.28 ft)
Optional Lenses: 2x Macro, DFOV (24°/14°), 6°, 14°, 42°
Pixel Pitch: 17 µm
Spectral Range: 7.5–14.0 µm
Thermal Sensitivity/NETD: Lens dependent: <30 mK to <40 mK
Visible Camera: Optional accessory
Weight: [incl lens] 0.82 kg (1.8 lb)
MEASUREMENT & ANALYSIS
Accuracy: ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F), object temperature above 0°C (32°F)
Standard Temperature Range: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
COMMUNICATION & DATA STORAGE
Command and Control: Gigabit Ethernet (RTSP, GigE Vision)
Digital I/O connector type: M12 Male 12-pin A-coded (shared with ext. power)
Digital Inputs: 2× opto-isolated, Vin (low) = 0-1.5 V, Vin (high) = 3-25 V
Digital Outputs: 3× opto-isolated, 0-48 VDC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1× dedicated as fault output (NC)
Ethernet Communication: GigE Vision ver. 1.2, Client API GenICam compliant, TCP/IP socket-based (FLIR proprietary)
Ethernet Connector Type: M12 8-pin X-coded, female
Ethernet Image Streaming: Yes
Ethernet Power Power: over Ethernet, PoE IEEE 802.3af class 3
WiFi: Optional feature
GENERAL
Size [L x W x H ]: w Lens 123 mm × 77 mm × 77 mm (4.84 in × 3.03 in × 3.03 in)
POWER
External Voltage: 18-56 VDC, 8 W max
Power: 24/48 V DC 8 W max
Power Cable: Configuration Power over Ethernet or External
Power Connection: M12 Male 12-pin A-coded (shared with Digital I/O)
ENVIRONMENTAL & CERTIFICATIONS
Encapsulation: IEC 60529, IP54, IP66 with accessory
Mounting: UNC ¼″-20 on 2 sides 4× M4 on 4 sides
Operating Temperature: –20°C to 50°C (–4°F to 122°F) Cooling plate is needed in temperatures above 40°C (104°F). Maximum camera case temperature: 65°C (149°F)
Shock: IEC 60068-2-27, 25 g
Storage Temperature Range: IEC 68-2-1 and IEC 68-2-2, -40°C to 70°C (-40°F to 158°F) for 16 hours
Vibration: IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal IEC 61373 Cat 1 (Railway)
