FLIR C5 - Compact Thermal Camera with Wi-Fi

by Flir
Original price $819.00 - Original price $819.00
Original price
$819.00
$819.00 - $819.00
Current price $819.00

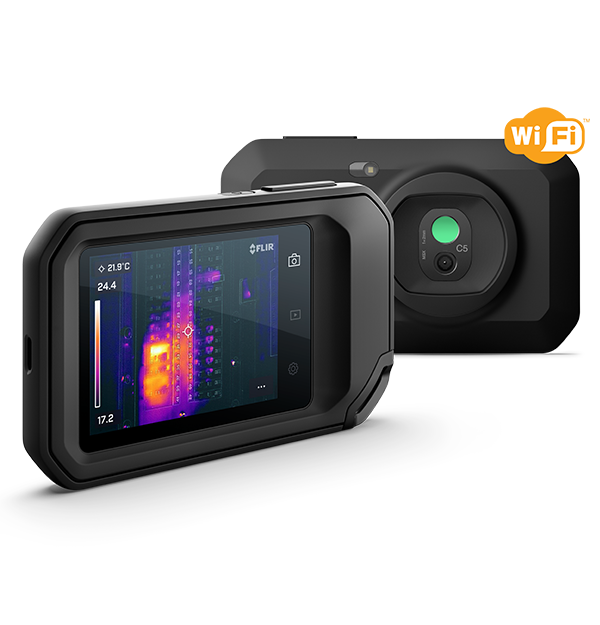

FLIR C5 - Compact Thermal Camera with Wi-Fi

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.

Features

FIND AND TROUBLESHOOT
Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span

DOCUMENT AND SHARE
Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers

RUGGED, RELIABLE, COMPACT
Take the pocket-portable C5 with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop

Specifications

Accuracy: At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Digital Camera: 5 MP
Image Modes: Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Storage Media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)

IMAGING & OPTICAL
Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Digital Camera: 5 MP
FLIR Screen-EST Mode: No
Focus: Focus free
Gallery: Thumbnails and custom folder structure
Image Frequency: 8.7 Hz
Image Modes: Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Minimum Focus: Distance Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
Spectral Range: 8 to 14 µm

MEASUREMENT & ANALYSIS
Accuracy: At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Camera size (L x W x H): 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent: temperature, Atmospheric compensation
Object Temperature Range: -20 to 400°C (-4 to 752°F)
Thermal Sensitivity: <70 mK

USER INTERFACE
Touchscreen Capacitive touch

POWER
Battery operating time: 4 hours
Battery Type: Rechargeable built-in Lithium-ion battery
Charging system: USB-C (1 A)
Charging Time: 2 hours
External Power Operation: 5 V, USB-C

ENVIRONMENTAL & CERTIFICATIONS
Drop test: 2 m (6.6 ft)
Encapsulation: Camera housing and lens: IP54 (IEC 60529)
Operating Temperature Range: -10 to 50°C (14 to 122°F)
Storage Temperature Range: -40 to 70°C (-40 to 158°F)
Tripod Mounting: UNC ¼"-20 (built-in)

Brochure

Flir C5 Data Sheet
