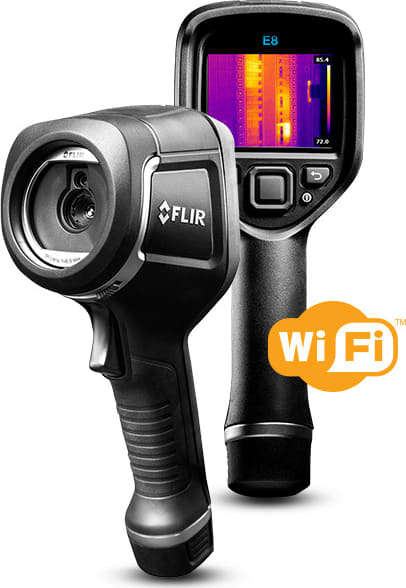

FLIR E8-XT IR Camera w/MSX and WiFi, 320 x 240 Resolution, 9Hz
FLIR E8-XT IR Camera w/MSX and WiFi, 320 x 240 Resolution, 9Hz
Infrared Camera with Extended Temperature Range, MSX and WiFi, 320 x 240 Resolution, 9Hz
FLIR E8-XT is the perfect tool for quickly locating and diagnosing electrical, mechanical, and building problems, thanks to its 76,800 (320 x 240) pixel infrared detector and expanded, -20°C to 550°C (-4°F to 1022°F) temperature range. FLIR MSX image enhancement provides extraordinary thermal imaging detail, while the built-in WiFi allows users to quickly connect with the FLIR Tools Mobile app for sharing images and sending reports easily from any location.
Features
PROFESSIONAL FEATURES AT AN AFFORDABLE PRICE
The FLIR E8-XT with Extended Temperature Range features 320 × 240 (76,800 pixels) thermal resolution ±2% accuracy, hot/cold spot measurements, and emissivity controls that meet the needs of your application and your budget.
EASY TO USE
With an always-in-focus lens, simple one-button image capture, and intuitive navigation screens you can operate with one hand, an Ex-Series camera is a tool you can start using out of the box.
RUGGED AND DEPENDABLE
With a 4 hr operating time, interchangeable batteries, 2 m (6.6 ft) drop test, and IP54 rating, an Ex-Series camera is the perfect addition to your tool bag.
Specifications
IR Resolution: 320 × 240 pixels
Thermal Sensitivity/NETD: <0.05°C (0.09°F) / <50 mK
Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV): 45° × 34°
Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
Display: 3.0 in. 320 × 240 color LCD
IMAGING & OPTICAL
Color: Black and gray
Color Palettes: Black & white, iron, and rainbow
Detector Type: Uncooled microbolometer
Field of view (FOV): 45° × 34°
FLIR Screen-EST Mode: No
f-number: 1.5
Focus: Focus free
Image Frequency: 9 Hz
Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
IR Resolution: 320 × 240 pixels
Minimum Focus Distance: 0.5 m (1.6 ft.)
Multi Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail
Picture-in-Picture: IR area on visual image
Spatial resolution (IFOV): 2.6 mrad
Spectral Range: 7.5–13 µm
Thermal Sensitivity/NETD: <0.05°C (0.09°F) / <50 mK
MEASUREMENT & ANALYSIS
Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Camera size (L x W x H): 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Camera weight incl battery: 0.575 kg (1.27 lb.)
Isotherm: Above alarm, below alarm
Object Temperature Range: –20°C to 550°C (-4°F to 1022°F) in two ranges
Reflected apparent temperature correction: Automatic, based on input of reflected temperature
Set-up Commands: Local adaptation of units, language, date and time formats
Spot Meter: Center spot; box with min./max.
USER INTERFACE
Display: 3.0 in. 320 × 240 color LCD
POWER
Charging system: Battery is charged inside the camera or in specific charger.
Charging Time: 2.5 hours to 90% capacity in camera. 2 hours in charger.
Power Management: Automatic shut-down
ENVIRONMENTAL & CERTIFICATIONS
Certifications: UL, CSA, CE, PSE and CCC
EMC: •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity
Operating Temperature Range: –15°C to 50°C (5°F to 122°F)
Radio Spectrum: •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
Shock: 25 g (IEC 60068-2-27)
Storage Temperature Range: –40°C to 70°C (–40°F to 158°F)
Vibration: 2 g (IEC 60068-2-6)
GENERAL
List of Contents: •Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation
Packaging Size: 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
