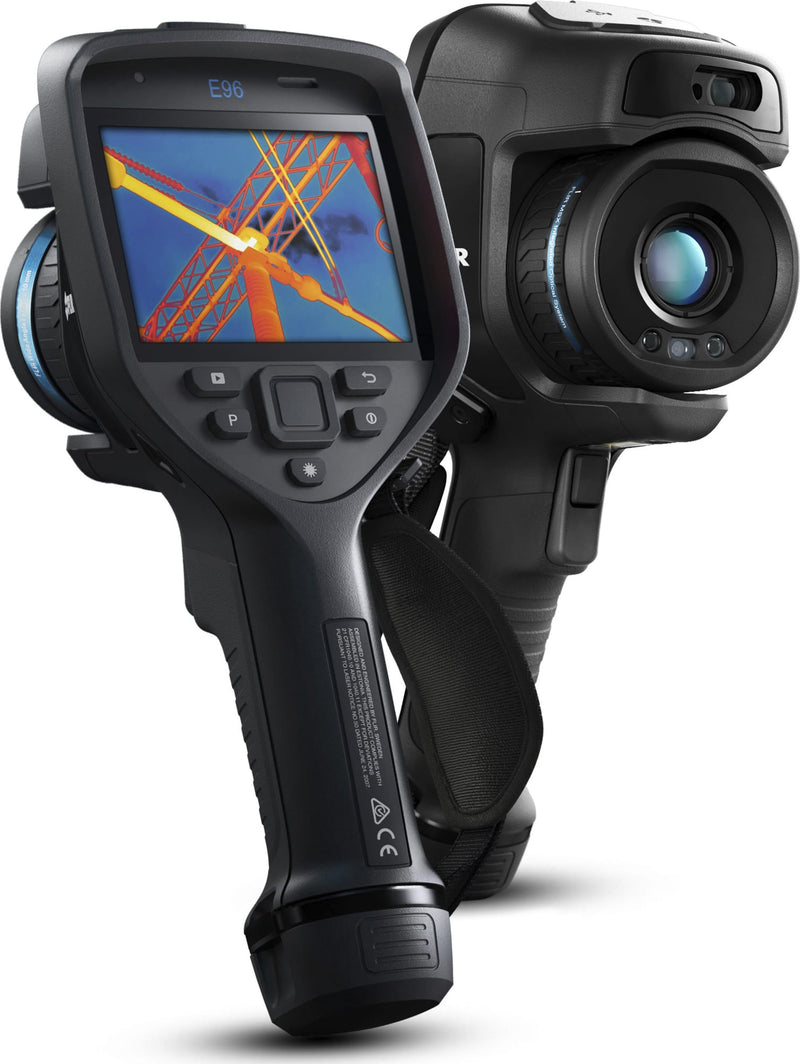

FLIR E96 - Advanced Thermal Imager with 640 x 480 Resolution - 24° Lens (90202-0101)
FLIR E96 - Advanced Thermal Imager with 640 x 480 Resolution - 24° Lens (90202-0101)
E96 with 24 degree lens, 640x480
The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. The FLIR E96 offers complete coverage of near and distant targets through a range of lens options. Pair the E96 with a FLIR FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button. The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.
Features
OUTSTANDING THERMAL IMAGERY
The 640 × 480 thermal resolution plus FLIR UltraMax and MSX image enhancement ensure the E96 produces the most vibrant, easiest-to-interpret images in its class.
ONE LENS, TWO FIELDS OF VIEW
Pair your Exx-Series camera with a FLIR FlexView dual field-of-view lens to conveniently switch from wide-area to telephoto scanning with one push of a button.
STREAMLINED REPORTING
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday. (*Optional accessory software)
Specifications
IR Resolution: 640 × 480 pixels
Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
Accuracy: ±2°C (±3.6°F) or ±2% of the reading
Digital Camera: 5 MP, with built-in LED photo/video lamp
Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media: Removable SD card
IMAGING & OPTICAL
Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch: Uncooled microbolometer, 12 µm
Digital Camera: 5 MP, with built-in LED photo/video lamp
Digital Zoom: 1-8× continuous
f-number: 1.3
Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
Image Frequency: 30 Hz
IR Resolution: 640 × 480 pixels
Lens Identification: Automatic
Minimum Focus Distance: 0.15 m
Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture: Resizable and movable
Radiometric IR video recording: Real-time radiometric recording (.csq)
Radiometric IR video streaming: Yes, over UVC
Spectral Range: 7.5-14 µm
Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
UltraMax: Yes
Viewfinder: No
MEASUREMENT & ANALYSIS
Accuracy ±2°C (±3.6°F) or ±2% of the reading
Measurement Presets: No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range: -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
Spot Meter: 3 ea. in live mode
USER INTERFACE
Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Text: Predefined list or touchscreen keyboard
Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
POWER
Battery operating time: >2.5 hours at 25°C (68°F) and typical use
Battery Type: Rechargeable Li-ion battery
ENVIRONMENTAL & CERTIFICATIONS
Operating Temperature Range: -15 to 50°C (5 to 122°F)
Safety: EN/UL/CSA/PSE 60950-1
Storage Temperature Range: -40 to 70°C (-40 to 158°F)
GENERAL
FLIR Inspection Route: Enabled in camera
Laser Pointer: Yes
Packaging: Infrared camera with lens, s2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter
