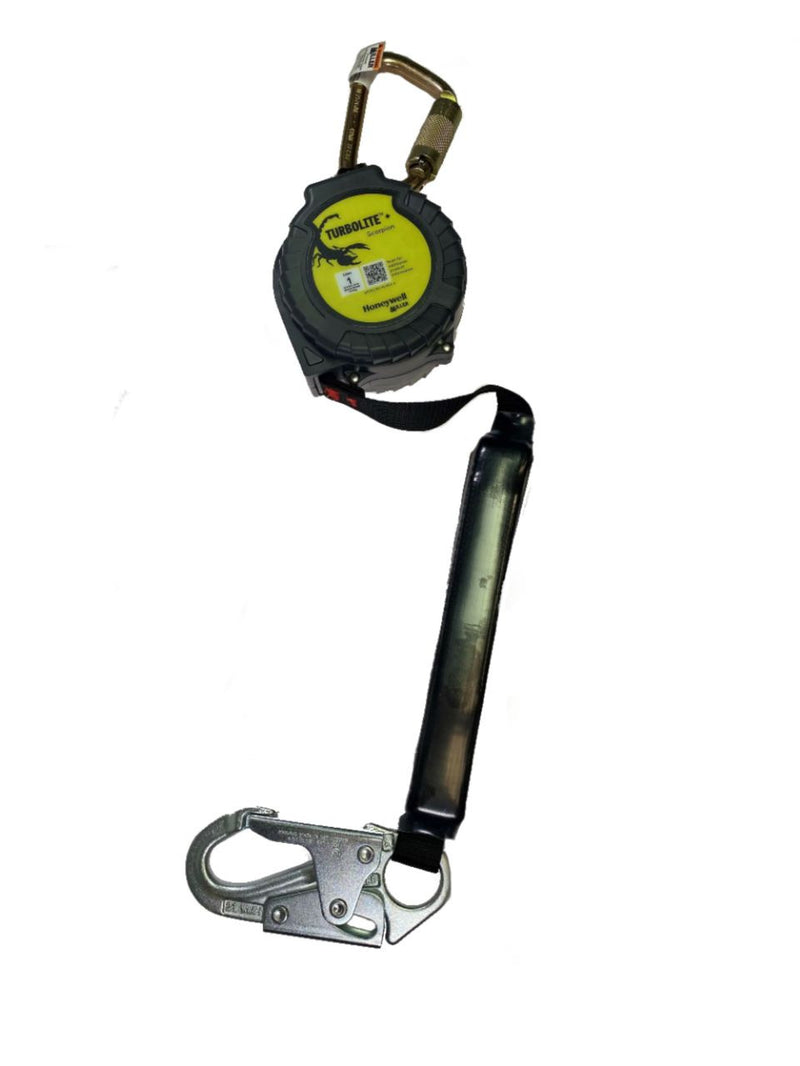

Miller MTL-OHS1-05/9FT Turbolite+ Personal Fall Limiters

The compact and lightweight Miller TurboLite+ Personal Fall Limiter (PFL) provides the same working capacity as a traditional shock-absorbing lanyard while instantly arresting a free fall within inches.

Features

• Increased Weight Rating - Increased weight rating up to 420lbs (190.5 kg). Meets requirements of OSHA, ANSI Z359.14 the new ANSI Z359.14-2021 Class 1
• Quick-activating: high-strength stainless steel braking system – arrests free falls
• No annual factory recertification required
• Visual load indicator: indicates the unit must be removed from service

Specifications

MATERIALS

Housing: High impact nylon
Hub: Shock-absorbing engineered co-polymer
Lifeline: Vectran core webbing, polyester jacket
Braking Mechanism: Stainless steel
Webbing:

• Vectran core, polyester jacket
• 1” wide x 0.06” thick (25.4mm x 1.5mm)
• 1” wide x 0.06” thick (25.4mm x 1.5mm)

Thread: Polyester
Connectors: See images below for details

TECHNICAL

Min. Working Capacity: 130 lb (59 kg)
Max. Working Capacity: See table below for capacity ratings
Working Length Capacity: 6 ft (1.8 m), 9 ft (2.74 m), 11 ft (3.35 m)
Max. Arrest Distance: 42 in (1.06 m)
Avg. Arresting Force: 1350 lb (6 kN) (when tested to ANSI Z359.14)
Max. Peak Arresting Force: (when tested to ANSI Z359.14) 900 lb (4kN) for 310 lb (140 kg) user and 1800 lb (8kN) up to 420 lb (190.5 kg) user (using the ANSI test method for Overhead SRL) 1,800 lb 8kN) (when tested to ANSI Z359.14)
Ultimate Strength: 3,000 lb (13.34kN)
