Miller X11012 ShockFusion Base Plate Fall Protection

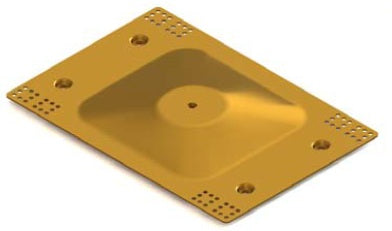

The X11012 ShockFusion Base Plate is a small base for connecting Fusion and ShockFusion Roof Posts to Membrane Roofs.

X11012 Connection Options

• Connection of Fusion Intermediate Post (X11008) or ShockFusion End/Corner Post (X11009) through membrane, insulation & into metal sheathing, wood sheathing or concrete with a combined thickness of up to 5.5 in. (140 mm) when paired with Toggle Bolt Kit for Membrane Roofing (X11004).
• Connection of Fusion Intermediate Post (X11008) or ShockFusion End/Corner Post (X11009) through membrane, insulation & into metal sheathing, wood sheathing or concrete with a combined thickness of > 5.5 in. (140 mm) up to 10.5 in. (267 mm) when paired with Toggle Bolt Kit for Membrane Roofing (X11005).

Specifications

Membrane: Yellow Zinc Chromate Plated Steel
Ultimate Strength Rating: 5,000 pounds (22.2kN)
Certifications: Meets OSHA 1910.66, 1926.502,
EN795 Class C and ANSI A10.32
