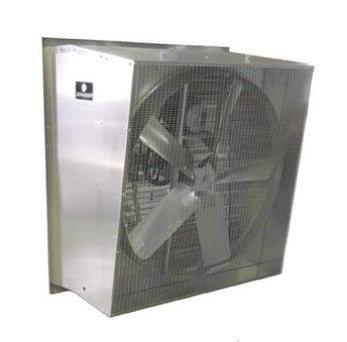

Schaefer 303SDD12 Galvanized Direct Drive Slant wall Exhaust Fan 30"
Original price
$803.59
-
Original price
$803.59
Original price
$803.59
$803.59
-
$803.59
Current price
$803.59
Schaefer 303SDD12 Galvanized Direct Drive Slant wall Exhaust Fan 30" 1/2HP
Schaefer 303SDD12 is manufactured for growers & building owners who require high volume exhaust ventilation.
These affordable exhaust fans flush mount inside walls of up to 6 inches and shed snow & water after installation.
- Engineered for high efficiency & airflow
- Thermally protected motors are totally enclosed for longevity and safety
- Ships fully assembled with
- Aluminum inlet shutters
- Self adjusting belt tensioner
- Galvanized outlet guard
- OSHA guard options available
- Simple belt replacements and maintenance
- (Optional) remote lubrication system
- Suitable for wall thickness up to 6"
- Schaefer 303SDD12 Slant wall Direct Drive Exhaust Fans Feature Thermally Protected And Enclosed Motors
Features
- Direct drive exhaust fan
- Mounts inside wall 6 inches maximum thickness
- 30 inch diameter
- 1/2 HP motor
- Galvanized steel fan blades - 3 wing blade style
- 2 year warranty
- USA Made
- Schaefer 303SDD12 Exhaust Fan Features A Direct Drive 1/2 HP Motor
Specifications
Motor: 1/2 HP
Blade Style: Galvanized steel - 3 wing
Voltage: 115 / 230
Amps: 7.0 / 3.5
Rough In (W x H): 37.25 x 37.75 inches
CFM: at 05" S.P. 7,200
RPM: at .05" 741
Warranty: 2 years
