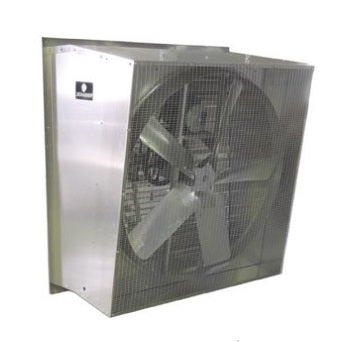

Schaefer 305S12 Galvanized Belt Drive Slant wall Exhaust Fan 30" 1/2HP

Schaefer 305S12 is manufactured for growers & building owners who require high volume exhaust ventilation.

These affordable exhaust fans flush mount inside walls of up to 6 inches and shed snow & water after installation.

• Engineered for high efficiency & airflow
• Thermally protected motors are totally enclosed motors for longevity and safety
• Ships fully assembled with
• Aluminum inlet shutters
• Self adjusting belt tensioner
• Galvanized outlet guard
• OSHA guard options available
• Simple belt replacements and maintenance
• (Optional) remote lubrication system
• Suitable for wall thickness up to 6"
• Schaefer 305S12 Exhaust Ventilation Fan Has A 30 Inch Diameter Galvanized Fan Blade

Features

• Belt drive exhaust fan
• Mounts inside wall 6 inches maximum thickness
• 36 inch diameter
• 1/2 HP motor
• Galvanized steel fan blades - 5 wing blade style
• 2 year warranty
• USA Made
• Schaefer 305S12 Exhaust Fan Includes A 2 Year Warranty

Specifications

Motor: 1 HP
Blade Style: Galvanized steel - 5 wing
Voltage: 115 / 230
Amps: 4.6 / 2.3
Rough In (W x H): 37.25 x 37.75 inches
CFM at 05" S.P.: 7000
RPM at .05":  596
Warranty: 2 years

Resources

Schaefer 305S12 Exhaust Fan Datasheet
