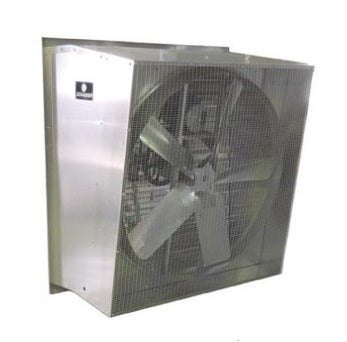

Schaefer 365S12 Galvanized Belt Drive Slant wall Exhaust Fan 36" 1/2HP
Original price
$1,839.00
-
Original price
$1,839.00
Original price
$1,839.00
$1,839.00
-
$1,839.00
Current price
$1,839.00
Schaefer 365S12 Galvanized Belt Drive Slant wall Exhaust Fan 36" 1/2HP
Schaefer 365S12 is manufactured for growers & building owners who require high volume exhaust ventilation.
These affordable exhaust fans flush mount inside walls of up to 6 inches and shed snow & water after installation.
- Engineered for high efficiency & airflow
- Thermally protected motors are totally enclosed motors for longevity and safety
- Ships fully assembled with
- Aluminum inlet shutters
- Self adjusting belt tensioner
- Galvanized outlet guard
- OSHA guard options available
- Simple belt replacements and maintenance
- (Optional) remote lubrication system
- Suitable for wall thickness up to 6"
- Schaefer 365S12 Slant wall Exhaust Fan Features A Thermally Protected, Totally Enclosed Motor
Features
- Belt drive exhaust fan
- Mounts inside wall 6 inches maximum thickness
- 36 inch diameter
- 1/2 HP motor
- Galvanized steel fan blades - 5 wing blade style
- 2 year warranty
- USA Made
- Schaefer 365S12 Galvanized Exhaust Fan Features Easy Belt Replacements
Specifications
Motor: 1 HP
Blade Style: Galvanized steel - 5 wing
Voltage: 115 / 230
Amps: 4.6 / 2.3
Rough In (W x H): 43.5 x 44 inches
CFM:at 05" S.P. 9,500
RPM: at .05" 496
Warranty: 2 years
