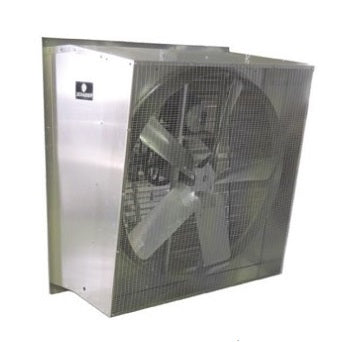

Schaefer 483S1 Galvanized Belt Drive Slant wall Exhaust Fan 48" 1HP
Schaefer 483S1 is designed for growers and building owners who need high volume flush mount exhaust fans.
These affordable exhaust fans flush mount inside walls of up to 6 inches and shed snow & water after installation.
- Engineered for high efficiency & airflow
- Thermally protected motors are totally enclosed motors for longevity and safety
- Ships fully assembled with
- Aluminum inlet shutters
- Self adjusting belt tensioner
- Galvanized outlet guard
- OSHA guard options available
- Simple belt replacements and maintenance
- (Optional) remote lubrication system
- Suitable for wall thickness up to 6"
- Schaefer 483S1 Features An Innovative Slant Wall Housing Which Sheds Water And Snow
Features
- Mounts inside wall 6 inches maximum thickness
- 48 inch diameter
- 1 HP motor
- Galvanized steel fan blades - 3 wing blade style
- 2 year warranty
- USA Made
- Schaefer 483S1 Is Great For Greenhouse And Other Commercial Exhaust Ventilation Applications
Specifications
Motor: 1 HP
Blade Style: Galvanized steel - 3 wing
Voltage: 115 / 230
Amps: 8.4 - 4.2
Rough In (W x H): 55.5 x 56 inches
CFM at .05" S.P.: 19,300
RPM at .05": 593
Warranty: 2 years
