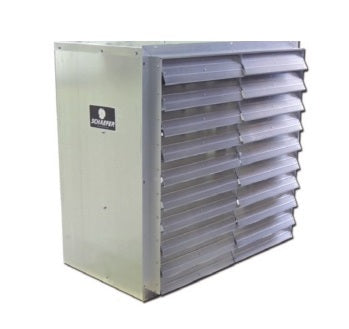

Schaefer 485B1-2 Galvanized Belt Drive Exhaust Fan 48" 1HP 2 Speed

Original price $1,785.00 - Original price $1,785.00
Original price
$1,785.00
$1,785.00 - $1,785.00
Current price $1,785.00

Schaefer 485B1-2 Galvanized Belt Drive Exhaust Fan 48" 1HP 2 Speed

Schaefer 485B1-2 helps you maintain a productive work environment by exchanging contaminated or hot air.

These high volume, affordable exhaust fans are shielded from the outside elements using side aluminum outlet shutters & mount inside walls of virtually any thickness.

Typically the outlet shutter is completely or nearly flush with the outside wall.

  • Designed for high efficiency and high airflow
  • Thermally protected, totally enclosed motors provide safety & longevity
  • Ships fully assembled with
    • Aluminum inlet shutters
    • Self adjusting belt tensioner
    • Galvanized outlet guard
  • Easy maintenance & belt replacements
  • (Optional) remote lubrication system
  • Suitable for any wall thickness

Features

  • Belt drive exhaust fan
  • Mounts inside wall of any thickness
  • 48 inch diameter
  • 1 HP 2 speed motor
  • Galvanized steel fan blades - 5 wing blade style
  • 2 Speed
  • 2 year warranty
  • USA Made

Specifications

Motor: 1 HP - 2 Speed
Blade Style: Galvanized steel - 5 wing
Voltage: 115 / 230
Rough In (W x H): 55 x 55 inches
CFM at .05" S.P.: 18,600
Warranty: 2 years

Resources

Schaefer 485B1-2 Datasheet
