Schaefer BD72-208460-3 Big Dog Industrial Air Circulation Fans 72 Inch

Original price $4,241.25 - Original price $4,241.25
Original price
$4,241.25
$4,241.25 - $4,241.25
Current price $4,241.25

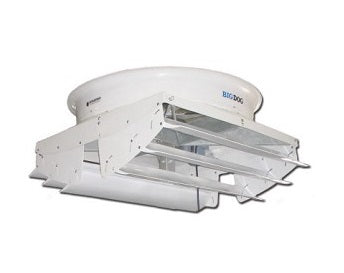

Schaefer BD72-208460-3 Big Dog Industrial Air Circulation Fans 72 Inch

Schaefer 72 Inch BIGDOG can move a massive amount of air at high speeds.

Typical ceiling fans move lots of air at a low rate of speed which results in minimal cooling. The Schaefer Big Dog provides summer cooling that employees need to work safely and more productively, while DE stratifying (warm air is pushed down from above) in winter to keep employees warm and reduce energy costs.

Misting Control System

Control misting along with your BIGDOG circulation fan by installing the mist control system. Schaefer's MCS will sense ambient humidity & turn off your low pressure mist system as humidity rises to ensure that the floors won't get wet & the air won't get oversaturated.

  • 3 Phase motor
  • Fitted with six fiberglass fully adjustable air deflectors to point airflow where needed
  • Adjustable air pattern velocity and shape with fan orientation & air deflector angle
  • Fiberglass corrosion resistant housing
  • Heavy duty bearing and pulley assembly
  • Maintenance free motor
  • Mounts away from people & equipment
  • Fan delivered fully assembled
  • Air deflectors added in the field

Features

  • Engineered to deliver over 60,000 CFM air movement & personnel cooling for a 200 x 35 foot area
  • Cools in summer for increased productivity
  • A single BIGDOG fan can replace several smaller air circulation fans
  • Can be utilized with a variable speed drive (50 - 300 RPM) to provide smooth speed adjustments which require as low as 300 Watts power - the best energy efficiency in class for 40 CFM / Watt
  • Extremely quiet operation at even at top speed, allowing normal conversation & comfortable working conditions
  • Rugged fiberglass adjustable air deflectors
  • Fits conveniently in corridors & between fire sprinkler systems
  • Hang with special cable
  • Wall and pole mounts provide maximum airflow where you need it
  • 2 year warranty

Specifications

Diameter: 72 inches
Motor: 3 HP - 3 Phase 208 / 230 / 460 Volts
Thrust: 48.54 lbf
Amps: 10.5
CFM: at . 64,500 / 10,000
RPM: 300 / 50
Weight: 375 pounds

Resources

Schaefer BigDog Datasheet

Schaefer BigDog Brochure
