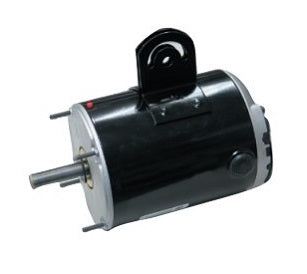

Schaefer CS240 Stud Mount Fan Motor With Yoke 2 Speed 1100 RPM

Schaefer CS240 Stud Mount Fan Motor With Yoke 2 Speed 1100 RPM

by Pinnacle Climate Technologies
$223.88 - $223.88
$223.88
$223.88 - $223.88
$223.88

Schaefer CS240 Stud Mount Fan Motor With Yoke 2 Speed 1100 RPM

Schaefer CS240 is a 1/4 HP 2 speed fan motor.

Features

  • Totally enclosed, air over, thermally protected motor
  • 40 deg. C ambient rated
  • 1/4 HP
  • Single phase, 2 speed
  • 1100 / 800 RPM
  • 115 Volts - 60 Hz
  • 2.9 / 1.6 Amps
  • NEMA frame size - 48
  • Shaft dimensions
  • 1/2 inch diameter
  • 2 9/16 inch length
  • CSA, UL certification

Resources

Schaefer CS240 Fan Motor Datasheet
