Schaefer CS580 Base Mount Fan Motor 115/230V 1725 RPM

Original price $467.00 - Original price $467.00
Original price
$467.00
$467.00 - $467.00
Current price $467.00

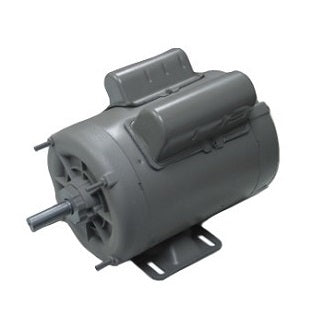

Schaefer CS580 Base Mount Fan Motor 115/230V 1725 RPM

Schaefer CS580 is a 1/2 HP 1725 RPM fan motor.

Features

  • Totally enclosed, air over, thermally protected motor
  • Reversible
  • 40 deg. C ambient rated
  • 1/2 HP
  • Single phase, single speed
  • 1725 RPM
  • 115 / 230 Volts - 60 Hz
  • 4.6 / 2.3 Amps
  • NEMA frame size - 56
  • Shaft dimensions
    • 5/8 inch diameter
    • 1 7/8 inch length
  • CSA, UL certification

Resources

Schaefer CS580 Fan Motor Datasheet
