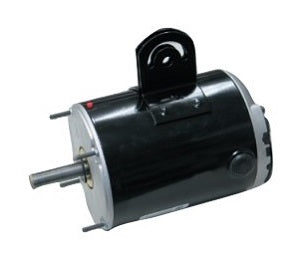

Schaefer CS802 Stud Mount Fan Motor With Yoke 115/230V 825 RPM

Schaefer CS802 is a 1/2 HP 825 RPM fan motor.

Features

  • Totally enclosed, air over, thermally protected motor
  • 40 deg. C ambient rated
  • 1/2 HP
  • Single phase, single speed
  • 825 RPM
  • 115 / 230 Volts - 50 Hz
  • 7.0 / 3.5 Amps
  • NEMA frame size - 48
  • Shaft dimensions
    • 5/8 inch diameter
    • 2 5/8 inch length
  • CSA, UL certification

Resources

Schaefer CS802 Fan Motor Datasheet
