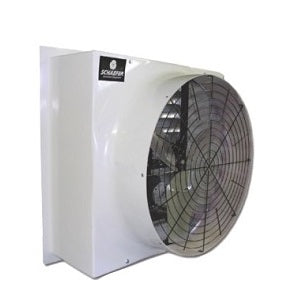

Schaefer FFM365G12 Fiberglass Narrow Belt Drive Exhaust Fan 36" 1/2HP

Schaefer FFM365G12 exhaust ventilation fans are used for exhausting high air volume at minimal cost.

Schaefer has learned from the agricultural industry to design & build the highest efficiency (high cfm / watt) long lasting, competitively priced exhaust fans for many different applications.

These high quality fans are used in factories, garages, warehouses & other locations where the building owner values low capital & operating cost.

• Engineered for high efficiency & airflow
• Fiberglass housing has a 15 year warranty
• Thermally protected motors are totally enclosed for longevity and safety
• Ships fully assembled with
• Aluminum shutters with minimized ?aping for better efficiency
• Permanently sealed, pre-lubricated ball bearings
• Self adjusting belt tensioner
• Simple belt replacements and maintenance
• (Optional) remote lubrication system
• Suitable for wall thickness up to 12"

Features

• Flush mount fiberglass belt drive exhaust fan
• Mounts inside wall 12 inches maximum thickness
• 36 inch diameter
• 1/2 HP motor
• Galvanized steel fan blades - 5 wing blade style
• 2 year warranty
• USA Made

Specifications

Motor: 1/2 HP
Blade Style: Galvanized steel - 5 wing
Voltage: 115 / 230
Amps: 4.6 / 2.3
Rough In (W x H): 43.5 x 43.75 inches
CFM at .05" S.P.:11,012
Warranty: 2 years

Resources

FFM365G12
