Schaefer FFM485G1-2 Fiberglass Narrow Belt Drive Exhaust Fan 48" 1HP

Original price $2,741.11 - Original price $2,741.11
Original price
$2,741.11
$2,741.11 - $2,741.11
Current price $2,741.11

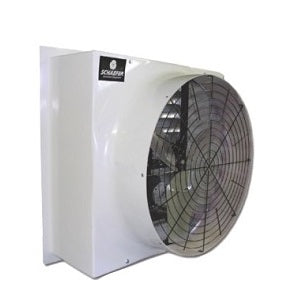

Schaefer FFM485G1-2 Fiberglass Narrow Belt Drive Exhaust Fan 48" 1HP

Schaefer FFM485G1-2 exhaust fans are utilized worldwide for exhausting high air volumes at low cost.

Schaefer has learned from the agricultural industry to design & build the highest efficiency (high cfm per watt) long lasting, competitively priced exhaust fans for many different applications.

These high quality fans are used in factories, garages, warehouses & other locations where the building owner values low capital & operating cost.

  • Engineered for high efficiency & airflow
  • Fiberglass housing has a 15 year warranty
  • Thermally protected motors are totally enclosed for longevity and safety

Ships fully assembled with

  • Aluminum shutters with minimized tapping for better efficiency
  • Permanently sealed, pre-lubricated ball bearings
  • Self adjusting belt tensioner
  • Simple belt replacements and maintenance
  • (Optional) remote lubrication system
  • Suitable for wall thickness up to 12"
  • Schaefer FFM485G1-2 Fiberglass Exhaust Fans Easily Mount Into Walls With A 12 Inch maximum Thickness

Features

  • Flush mount fiberglass belt drive exhaust fan
  • Mounts inside wall 12 inches maximum thickness
  • 48 inch diameter
  • 2 Speed, 230 Volt 1 HP motor
  • Galvanized steel fan blades - 5 wing blade style
  • 2 year warranty
  • USA Made
  • Schaefer FFM485G1-2 Features A Powder Coated Outlet Guard

Specifications

Motor: 1 HP - 2 Speed
Blade Style: Galvanized steel - 5 wing
Voltage: 230
Amps: 5.3 / 3.0
Rough In (W x H): 55.75 x 56.25 inches
CFM at .05" S.P.: 20,570 /13,419
Warranty: 2 years
