Schaefer FFM523G1-2 Fiberglass Narrow Belt Drive Exhaust Fan 52"

Original price $2,231.00 - Original price $2,231.00
Original price
$2,231.00
$2,231.00 - $2,231.00
Current price $2,231.00

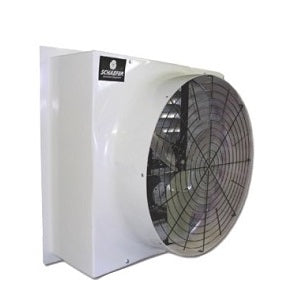

Schaefer FFM523G1-2 Fiberglass Narrow Belt Drive Exhaust Fan 52" 1HP

Schaefer FFM523G1-2 exhaust fans are utilized worldwide for exhausting high air volumes at low cost.

Schaefer has learned from the agricultural market to design & build high efficiency (high cfm / watt) long lasting, competitively priced exhaust fans for many different applications.

  • These high quality fans are used in factories, garages, warehouses & other locations where the building owner values low capital & operating cost.
  • Engineered for high efficiency & airflow
  • Fiberglass housing has a 15 year warranty
  • Thermally protected motors are totally enclosed for longevity and safety
  • Ships fully assembled with
  • Aluminum shutters with minimized aping for better efficiency
  • Permanently sealed, pre-lubricated ball bearings
  • Self adjusting belt tensioner
  • Simple belt replacements and maintenance
  • (Optional) remote lubrication system
  • Suitable for wall thickness up to 12"
  • Schaefer FFM523G1-2 Is Designed For High Efficiency And Airflow

Features

Flush mount fiberglass belt drive exhaust fan
Mounts inside wall 12 inches maximum thickness
52 inch diameter
2 Speed 1 HP motor - 230 Volts
Galvanized steel fan blades - 3 wing blade style
2 year warranty
USA Made
Schaefer FFM523G1-2 Fiber Glass Exhaust Fan Features Aluminum Inlet Shutters

Specifications

Motor: 1/2 HP
Blade Style: Galvanized steel - 3 wing
Voltage: 230
Amps: 8.4 / 4.2
Rough In (W x H): 59.25 x 59.25 inches
RPM: at .24,057
Warranty: 2 years
