Schaefer FFM525G1-3 Fiberglass Belt Drive Exhaust Fan 52" 1HP

Original price $2,732.40 - Original price $2,732.40
Original price
$2,732.40
$2,732.40 - $2,732.40
Current price $2,732.40

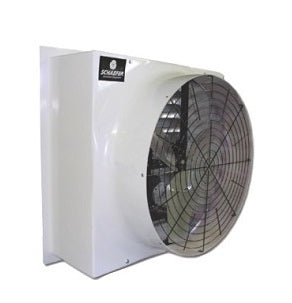

Schaefer FFM525G1-3 Fiberglass Belt Drive Exhaust Fan 52" 1HP

Schaefer FFM525G1-3 exhaust fans are utilized worldwide for exhausting high air volumes at low cost.

Schaefer has learned from the agricultural market to design & build high efficiency (high cfm / watt) long lasting, competitively priced exhaust fans for many different applications.

These high quality fans are used in factories, garages, warehouses & other locations where the building owner values low capital & operating cost.

  • Engineered for high efficiency & airflow
  • Fiberglass housing has a 15 year warranty
  • Thermally protected motors are totally enclosed for longevity and safety

Ships fully assembled

  • Aluminum shutters with minimized ?aping for better efficiency
  • Permanently sealed, pre-lubricated ball bearings
  • Self adjusting belt tensioner
  • Simple belt replacements and maintenance
  • (Optional) remote lubrication system
  • Suitable for wall thickness up to 12"
  • Schaefer FFM525G1-3 Is Designed For High Efficiency And Airflow

Features

  • Flush mount fiberglass belt drive exhaust fan
  • Mounts inside wall 12 inches maximum thickness
  • 52 inch diameter
  • 3 Phase 1 HP motor
  • Galvanized steel fan blades - 5 wing blade style
  • 2 year warranty
  • USA Made
  • Schaefer FFM525G1-3 Fiber Glass Exhaust Fan Features Aluminum Inlet Shutters

Specifications

Motor: 1 HP - 3 Phase
Blade Style: Galvanized steel - 5 wing
Voltage: 208 - 230 / 460
Amps: 3.2 / 1.6
Rough In (W x H): 59.25 x 59.25 inches
RPM: at .24,057
Warranty: : 2 years
