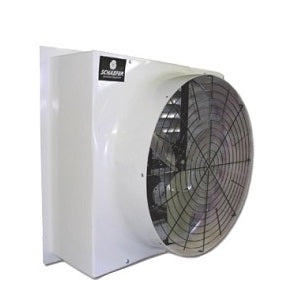

Schaefer FFM525G112-3 Fiberglass Belt Drive Exhaust Fan 52" 1.5HP

Schaefer FFM525G112-3 exhaust fans are utilized worldwide for exhausting high air volumes at low cost.

Schaefer has learned from the agricultural market to design & build high efficiency (high cfm / watt) long lasting, competitively priced exhaust fans for many different applications.

These high quality fans are used in factories, garages, warehouses & other locations where the building owner values low capital & operating cost.

Engineered for high efficiency & airflow

• Fiberglass housing has a 15 year warranty
• Thermally protected motors are totally enclosed for longevity and safety
• Ships fully assembled with
• Aluminum shutters with minimized ?aping for better efficiency
• Permanently sealed, pre-lubricated ball bearings
• Self adjusting belt tensioner
• Simple belt replacements and maintenance
• (Optional) remote lubrication system
• Suitable for wall thickness up to 12"
• Schaefer FFM525G112-3 Is Designed For High Efficiency And Airflow

Features

• Flush mount fiberglass belt drive exhaust fan
• Mounts inside wall 12 inches maximum thickness
• 52 inch diameter
• 3 Phase 1.5 HP motor
• Galvanized steel fan blades - 5 wing blade style
• 2 year warranty
• USA Made
• Schaefer FFM525G112-3 Fiber Glass Exhaust Fan Features Aluminum Inlet Shutters

Specifications

Motor: 1.5 HP - 3 Phase
Blade Style: Galvanized steel - 5 wing
Voltage: 208 - 230 / 460
Amps: 3.2 / 1.6
Rough In (W x H): 59.25 x 59.25 inches
RPM: at .24,057
Warranty: 2 years
