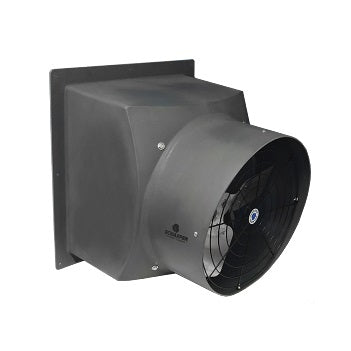

Schaefer PFM2400-1-HL Direct Drive Hazardous Location Poly Exhaust Fan 24"
Schaefer PFM2400-1-HL Direct Drive Hazardous Location Poly Exhaust Fan 24"
24" Direct Drive Hazardous Location Exhaust Fan, Aluminum Shutter, Aluminum Blade
A robust and versatile solution for exhausting moderate amounts of the air containing flammable or explosive vapors, gases, or dusts. Fans have a spark proof design to minimize the potential for the fan being the ignition source of an explosion in a hazardous location.
Motors are UL Listed for Class I, Division I, Groups C & D, and Class 2, Division 1, Groups E, F, & G for flammable vapors and combustible dust environments.
The fans provide an energy efficient and cost effective solution for exhausting air and moisture from a wide range of hazardous location applications.
Features
- Three sizes - 16", 20" and 24" diameters
- Non-sparking aluminum blades for increased safety
- Anti-static polyethylene gray housing for safety and corrosion resistance
- Thermally protected, heavy-duty, maintenance free, 1 speed motor for optimal performance
- Matched high quality motors and blades for maximum airflow
- Integrated aluminum inlet shutter and powder coated outlet guard
- Mounts flush to interior wall; suitable for buildings with up to 10" wall thickness
- Ships fully assembled
- Two year fan warranty; 25 year housing warranty
- Made in the USA
IMPORTANT! THE USE OF AN EXPLOSION PROOF MOTOR OR AN ALUMINUM BLADE DOES NOT QUALIFY THE FAN AS EXPLOSION PROOF. NO AIR EXHAUST/VENTILATION FAN IS TOTALLY EXPLOSION PROOF.
