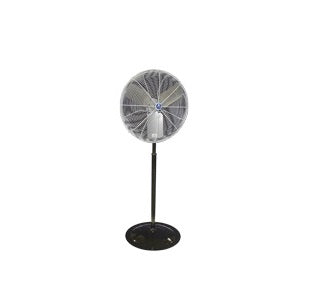

Schaefer TW20W-PRB 20" Oscillating OSHA Pedestal Fan

Original price $580.32 - Original price $580.32
Original price
$580.32
$580.32 - $580.32
Current price $580.32

Schaefer TW20W-PRB 20" Oscillating OSHA Pedestal Fan

Geared for performance, Twister's oscillating motor utilizes highest quality metal gear design for unparalleled strength, greater load capacity and higher accuracy. Whether aimed at a workstation or down an assembly line, Twister provides the versatility and performance needed to improve worker productivity and safety.

Features

  • Schaefer oscillation technology
  • 2-speed high efficiency motor with 10 foot cord
  • OSHA compliant guards, available in black or white
  • 90° of total oscillation
  • 45° of fan head adjustment up or down
  • Four sizes 20", 24", 30" and 36" for optimizing air flow needs
  • Low noise levels, quieter than conversational voice
  • Fixed or portable mounting capabilities
  • Two year warranty
  • Assembled in the USA

Specifications

Blade Color: Metallic
Blade Material: Aluminum
Brand: Schaefer
CFM (free air): 4100
CFM (high): 4100
CFM (low): 3400
CFM Calculation Standard: ANSI/AMCA Standard 230-99
CFM Range (Free Air): 2501 - 5000
CFM/Watt (free Air): 22.8
CFM/Watt Range (free air): 20.1 - 25
Component Certifications: Motor - CSA
Cord: Included - Wired
Cord Length (feet): 10
Country of Origin: US
Description: 20" Oscillating Circulation Fan, White OSHA Guards, Black Round Pedestal
Diameter (inches): 20
Drive Type: Direct
Fixed or Portable: Portable
Frequency (Hz): 60
Guard Color: White
Guard Material & Coating: Powder Coated Steel
Guard Spacing (inches): 1/2 OSHA
Max RPM: 1075
Mount Type Included: Pedestal
Mount Type Recommended: NA
Nameplate Amps: 3.0
Number of Wings: 3
Opening Area (sq. ft.): NA
Oscillating: Yes
Phase:1
Power (hp): 1/4
Product Color: White
Rough-in Dimensions: NA
Schaefer Performance Test No.: 697
Sound Level (dBA @ 10'): 63.5
Speed Control Compatible: No
Speeds: 2
Switch: On product
VFD Compatible: No
Voltage: 115
