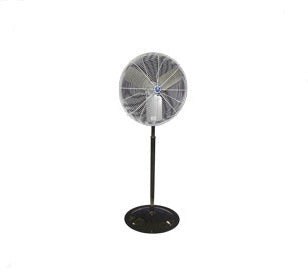

Schaefer TW30W-PRB Twister Oscillating Pedestal Fan
Schaefer TW30W-PRB Twister Oscillating Pedestal Fans
Geared for performance, Twister's oscillating motor utilizes highest quality metal gear design for unparalleled strength, greater load capacity and higher accuracy. Whether aimed at a workstation or down an assembly line, Twister provides the versatility and performance needed to improve worker productivity and safety.
Features
- Schaefer oscillation technology
- 2-speed high efficiency motor with 10 foot cord
- OSHA compliant guards, available in black or white
- 90° of total oscillation
- 45° of fan head adjustment up or down
- Four sizes 20", 24", 30" and 36" for optimizing air flow needs
- Low noise levels, quieter than conversational voice
- Fixed or portable mounting capabilities
- Two year warranty
- Assembled in the USA
Specifications
Air Velocity (@ 10'): 1100
Blade Color: Metallic
Blade Material: Aluminum
Brand: Schaefer
CFM (free air): 9600
CFM (high): 9600
CFM (low): 8500
CFM Calculation Standard: ANSI/AMCA Standard 230-99
CFM Range (Free Air): 5001 - 10000
CFM/Watt (free Air): 19.7
CFM/Watt Range (free air): 15.1 - 20
Component Certifications: Motor - UL/CSA/CE
Cord: Included - Wired
Cord Length (feet): 10
Country of Origin: US
Description: 30" Oscillating Circulation Fan, White OSHA Guards, Black Round Pedestal
Diameter (inches): 30
Drive Type: Direct
Fixed or Portable: Portable
Frequency (Hz): 60
Guard Color: White
Guard Material & Coating: Powder Coated Steel
Guard Spacing (inches): 1/2 OSHA
Max RPM:1075
Mount Type Included: Pedestal
Mount Type Recommended: NA
Nameplate Amps: 5.9
Number of Wings: 3
Opening Area (sq. ft.): NA
Oscillating: Yes
Phase: 1
Power (hp): 1/2
Rough-in Dimensions: NA
Schaefer Performance Test No.: 701
Sound Level (dBA @ 10'): 71
Speed Control Compatible: No
Speeds: 2
Switch: On product
VFD Compatible: No
Voltage: 115
