Used Cool Machines C2U145 - 5 HP Electric Insulation Vacuum Electro-Vac, SKU U-C2U145, Insulation Vacuum Systems

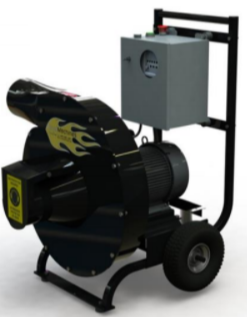

Used Cool Machines C2U145 - 5 HP Electric Insulation Vacuum Electro-Vac

by Cool Machines
$5,580.00 - $5,580.00
$5,580.00
$5,580.00 - $5,580.00
$5,580.00

Used Cool Machines C2U145 - 5 HP Electric Insulation Vacuum Electro-Vac

Electric vac, 5 HP 18" X 3" AR400 Fan, 6" intake & exhaust, 240 volt, 1 phase, 30 amp

Direct Drive with large diameter turbine impeller = high tip speed, low maintenance and noise levels while providing the highest production in the industry.

An industry first: AR-400 1/4” steel chamber band eliminates the need for a replaceable liner. Cool Machine's AR-500 steel fan blades offer 3x’s the wear life. Combined it with a 'Vacuum Saver’ design (optional), and objects are removed from the fiber ‘before’ causing catastrophic damage to the impeller fan, chamber, and engine.

Cool Machines insulation vacuums are portable, versatile, and high production to reduce labor time and increase profitability.

Specifications

Weights: 140 lbs.
Dimensions: 30” long x 28” wide x 38” high
Motor: 5 h.p. electric
Power Requirements: 240 volts, 1 phase, 20 amp grid power or 10kw generator/larger
Fan Housing: 1/4” AR-500 steel fan x 1/4” AR-400 steel chamber
Blade Diameter: 18" (comparable to 11 h.p. gas vacuum)

  • Adjustable fan speed for control of various applications
  • 6" dia. Inlet and Exhaust
  • 10" dia. Run-Flat Wheels
